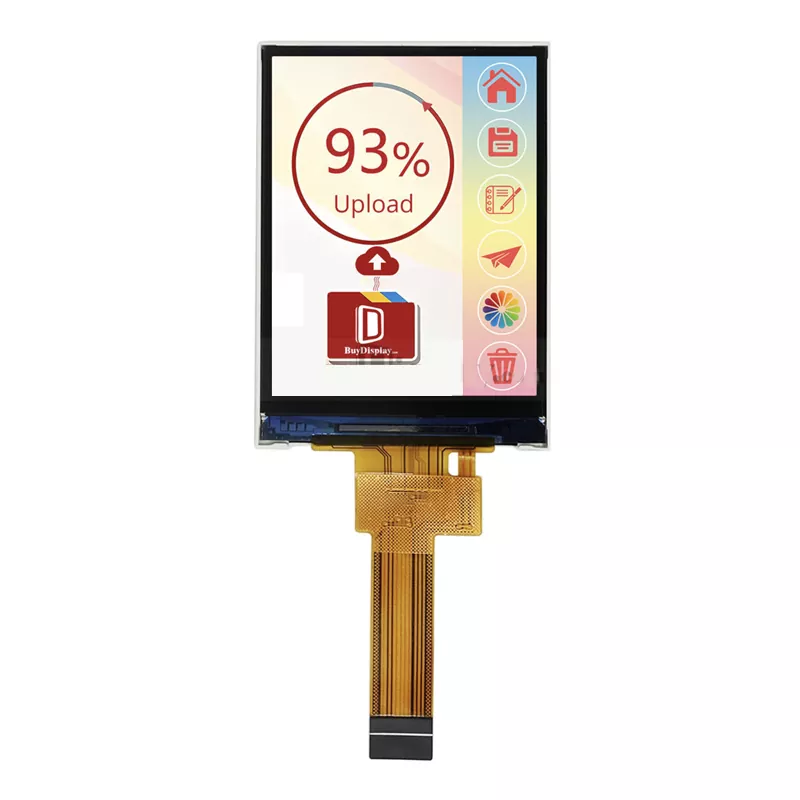

2 hazbeteko 240x320 spi tft modulua

In the age of intelligence, the TFT module enables us to present the required data visually. The quality of the TFT module has a critical impact on its application. What are the advantages of the Victronix 2 inch 240x320 SPI TFT Module? At first, its 320 cd/m² brightness, 1000:1 contrast ratio, 85° horizontal/vertical viewing angles, and 80% uniformity ensure vivid imagery. Secondly, it supports a 4-Wire SPI interface and includes a 4-die white LED backlight with a lifetime of 30,000 to 50,000 hours, ensuring its long-term usability in various industrial applications. Besides, it complies with RoHS standards and successfully passes rigorous reliability tests, including thermal shock, humidity, and ESD protection up to 8kV air and 4kV contact. This product operates efficiently in extreme temperatures ranging from -20°C to +70°C and can withstand severe storage conditions from -30°C to +80°C.

This 2 inch TFT module from Victronix is designed for smart wearables, smartwatches, household appliances, toys, medical equipment, industrial HMIs, IoT controllers, and handheld devices.

General Specification

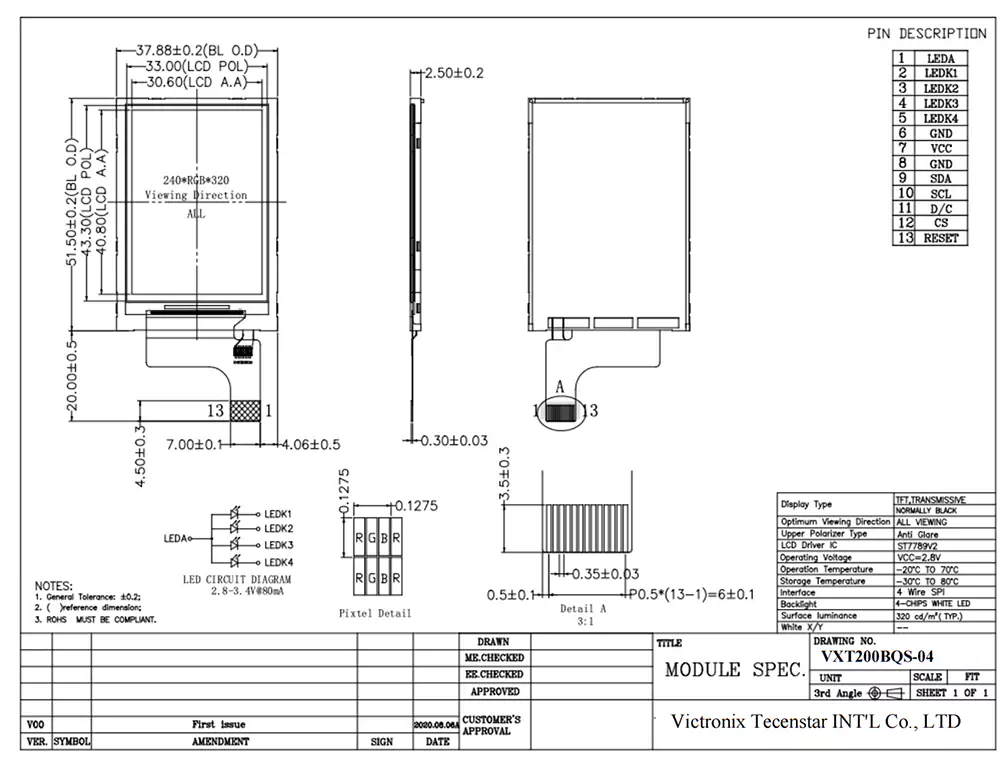

Mechanical Drawing
