12,1 hazbeteko 1024 * 768 Kanpoko IPS TFT modulua

TFT LCD is a type of liquid crystal display that uses thin-film-transistor technology to improve image quality and it has a wide range of applications in life. As a professional TFT module manufacturer and supplier in China, what makes the Victronix 12.1 inch 1024*768 Outdoor IPS TFT Module different from other manufacturers? At first, its IPS technology ensures consistent color and clarity with an 85-degree viewing angle from all directions, 1000 cd/m² typical brightness, and a high typical contrast ratio of 1000:1. Secondly, it integrates a backlight unit utilizing 11S4P-LEDs with a typical lifetime of 30,000 to 50,000 hours (to 50% initial brightness), ensuring clear visibility in all lighting conditions. Besides, it supports 6-bit/8-bit color depth (selectable via SEL68 pin) with display orientation control. In addition, it passes rigorous environmental testing including High/Low Temperature Storage & Operation, Temperature Cycling, and High Temperature/Humidity Operation, ensuring operates reliably within an extensive temperature range of -20°C to +70°C and withstands storage under the same harsh conditions.

This Victronix 12.1 inch TFT module is widely used in Industrial control systems, medical equipment, transportation displays, and embedded applications requiring consistent performance in challenging environments.

General Specifications

VXT121QXHA-01 is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light,PCB . The12.1¢¢ display area contains 1024 x 768. pixels and can display up to 16.7M colors. This 12.1 inch 1024*768 Outdoor IPS TFT Module accords with RoHS environmental criterion.

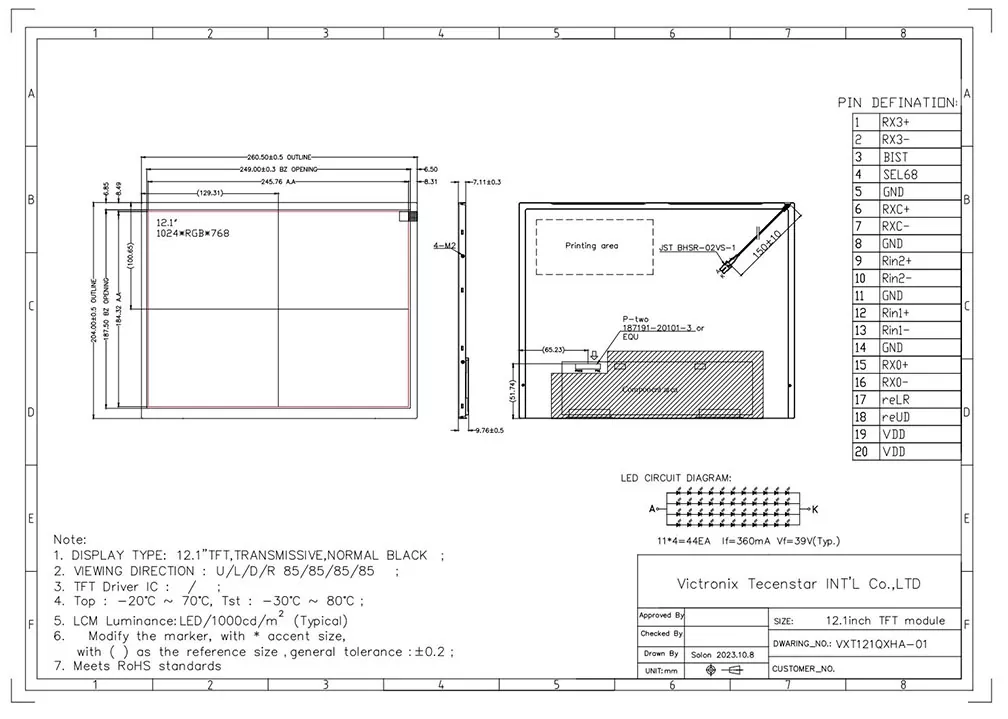

Outline Drawing
